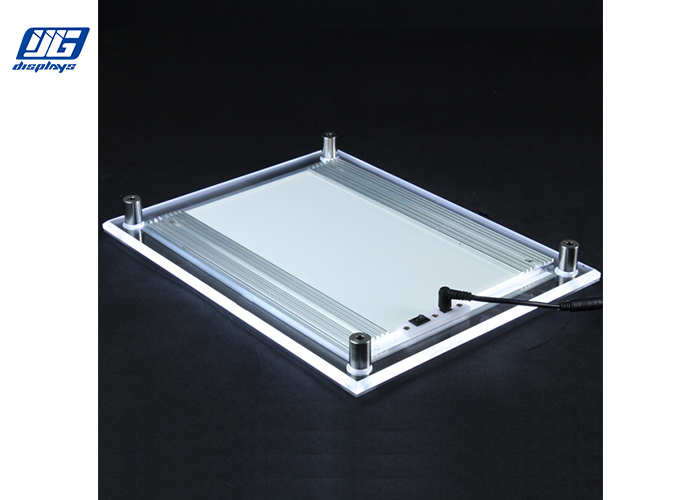

CRS Clear Frame Advertising Light Box 3.5W DC12V With Wall Mounting Screws
Product Introduction
Open mode:snap frame
Shape:Rectangle/square
Package:bubble bag , cartons , wood box for long distance transport
Material:the Edgelight LGP , aluminum frame , other accessories
LGP : Laser dotting technology , V-cutting engraved grid
Light source:SMD LED light source , with 3528 , 2835 , 5050 , 3535 or others
LED light source:3528/2835/5050/3535 LED strips ; LED IC chip:Epistar or CREE
Frame color:oxidated alloy aluminum frame , other colors can be customized
Thickness:Ultra thin
Life span:LED life time more than 50000 hours
Mounting:wall mouting , hanging type
Easy installation , safe and simple to use
Input voltage:12V/24V
Suitable size:size can be customized
Product Status
| ITEM | A4 |
| Color | Clear |
| Frame Size(mm) | 290x378x7 |
| Viewing Size(mm) | 200x289 |
| Image Size | 297x210 |
| Gross Weight | 2kg |
| Average Brightness(no graphic) | 2000 Lux |
| Thickness | 7mm |
| Power Consumption | 3.5W |
| Input Voltage | DC12V/24V |
| LED | 2835 SMD |
| C.C.T | 6000~6500K |
| Working Tem. | -20℃~50℃ |
| Warranty | 1~2 years |
| Max.Size | 2000x1000mm |
| Shape | Rectangle |
Customized is available to fit to unique using circumstances and requirements under the max size,we can change the design according to your needs to meet you requiry.
Product Features

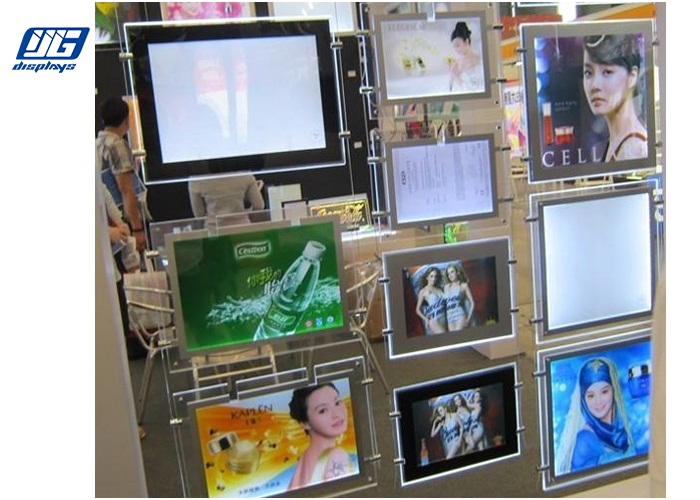

◆ Portrait or landscape installation available,different sizes are also available according to the specific needs for a better service provide for all kinds of customs.If you have any ideas,please tell us.
◆ Ultra thin frame design can improve the visual effect as well as saving the space. External power supply and energy saving design make you a satisfied bright chioce.
◆ Wall mounted or counter-top display available. The Single Side Crystal LED Light Box can be put on the desk and you can ajust location of the light box as you want,the light box even can be hanging.

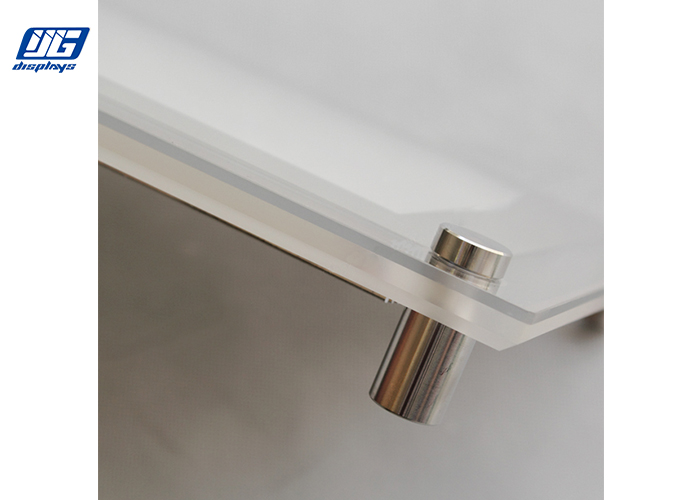

◆ Unique screws design can provide a stable assembly when the products being installed on the wall or other place,meawhile this design has a better visual effect to improve the whole viewing feeling.
◆ White color LED or RGB LEDs to be chose for variety display,customized available to meet all kinds of specific needs from customs.The light source also can be adjusted.
◆ The frame of Single Side Crystal LED Light Box is made of 100% pure clear acrylic,high quality acrylic can provide a magic visual effect when the light box being lighted up.
◆ Light source:3014/4014/2835/5630 SMD LED with 50000 hours life span and LM80 listed, energy-efficient, low heat generation. Low power consumption, energy-saving(up to 70% compared with normal light), high illumination and environment friendly.
Packing
◆ First step, the clear frame light box to be cleaned by solvent, the dust and spots during the production will be wiped out.
◆ Second step, the clear frame light box to be put in a clear poly bag, then wraped by bubble paper, at last sealed in a 6.8mm thickness K=K carton.
◆ Corrugated carton or plywood case may be used if the clear frame light box need to be delivered to you by express or air.
Shipping
We can deliver the products you ordered by the all kinds of express or air freight,if there is a substantial order,we may load a container and ship it to you.
Factory View
Welcome your contact and look forward to your requiry.
Customers' needs always come first.
We pledge to provide you with professional service in designing and processing.
Over-10-year expericence are in accord with your assurance and recognition of our high quality CRS Clear Frame Advertising Light Box 3.5W DC12V With Wall Mounting Screws.
